Introduction
The advent of artificial intelligence in design has opened new possibilities for automating architectural floor plan creation. In recent years, AI-driven generative models have gained popularity in architecture, promising to complement and enrich the architect’s workflow. Generating floor plans algorithmically is not entirely new – past approaches like shape grammars and L-systems showed it was possible to encode design rules for automatic layout generation. However, such rule-based systems often had to be hard-coded for each specific style or problem, limiting their flexibility. Today, data-driven machine learning methods are transforming floor plan generation by learning design patterns from large datasets, rather than relying on manually coded rules.
Use Cases for AI-Generated Floor Plans
1. Early-Stage Design Exploration
Architects can quickly generate multiple schematic floor plan options from high-level criteria. Systems like Graph2Plan allow designers to define room counts and adjacencies and generate valid plans instantly.
2. Automated Layout for Developers
Real estate developers use generative tools to evaluate building layouts under zoning rules and spatial constraints. Platforms like Architechtures deliver rapid, optimized residential plans for feasibility studies and regulatory compliance.
3. Custom Design for Clients and Tenants

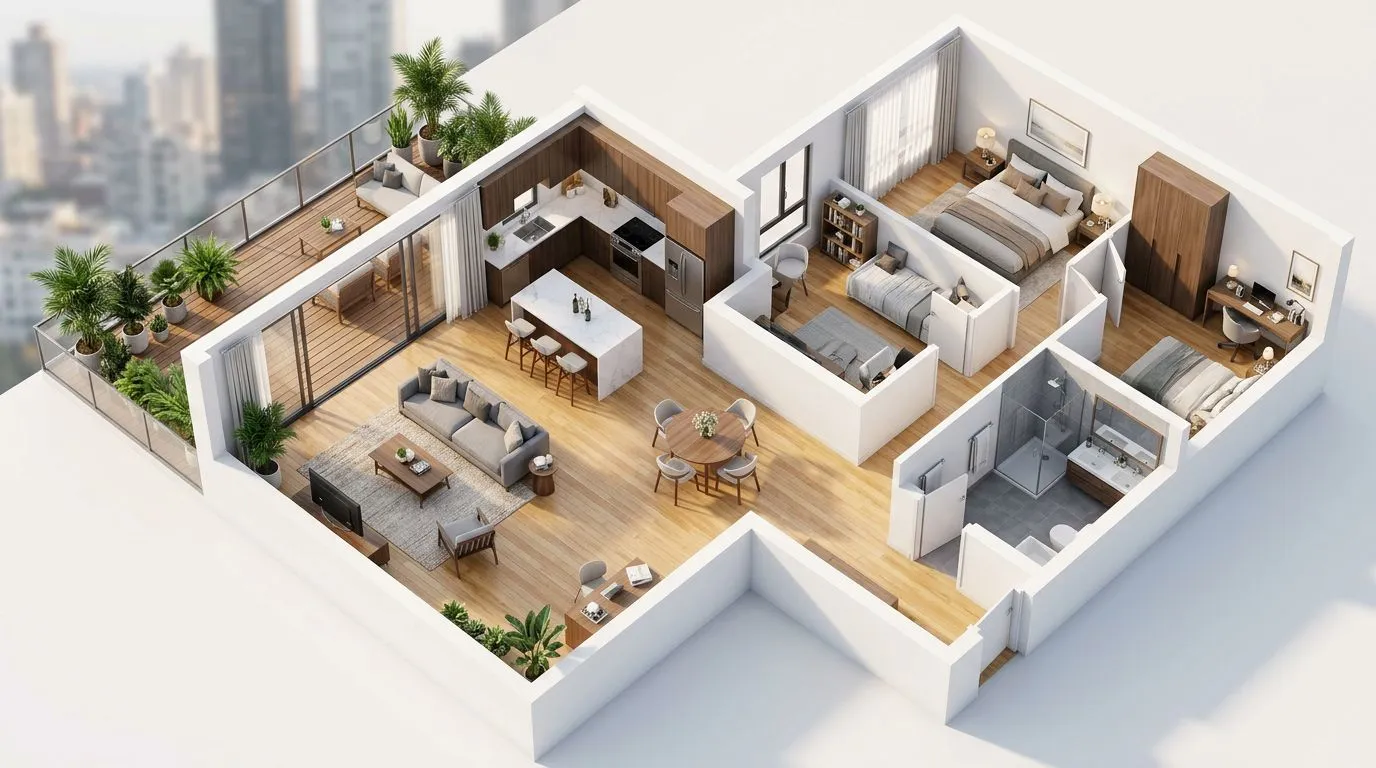

Users can input specific preferences and receive tailored floor plans. Tools like Maket and Qbiq support tenant-specific office and home layout generation, even accepting natural language inputs.
4. Performance-Driven Space Planning
AI is used to optimize layouts for functional performance (e.g., travel distance, lighting). Techniques like evolutionary algorithms help generate plans for care facilities or educational spaces.
5. Procedural Content Generation
Outside of architecture, generative floor plan tools are used in games and simulation environments for auto-generating realistic indoor spaces.
Technologies and Methods
Generative Adversarial Networks (GANs)
GANs synthesize floor plans by learning from datasets. Early models captured common spatial patterns but struggled with fine-grained control. House-GAN and pix2pix-style approaches pioneered image-based generation.
Graph-Based Neural Networks
GNNs treat rooms and adjacencies as a graph. Graph2Plan converts a layout graph and boundary into a full plan, enabling editable, constraint-aware generation.
Diffusion Models
Newer models like HouseDiffusion and FloorplanDiffusion use denoising to incrementally form plans from noise, enabling multi-conditional and non-rectilinear generation. Some are integrated with LLMs (e.g., ChatHouseDiffusion) for text-to-layout workflows.
Evolutionary and Optimization Algorithms
Algorithms like NEAT and NSGA-II explore layout combinations to optimize for multiple objectives. These are used when performance criteria (like efficiency or cost) must be met alongside design constraints.
Benefits
- Speed and Productivity: Generate thousands of layouts in minutes.
- Enhanced Creativity: Discover novel layouts beyond conventional thinking.
- Multi-Objective Optimization: Balance daylight, circulation, cost, etc.
- Knowledge Retention: Learned best practices from training data.
- Cost Savings: Reduce time and labor in early-stage design.
Challenges
- Constraint Satisfaction: Ensuring outputs are usable and buildable.
- Data Bias: Limited and homogeneous training datasets reduce diversity.
- User Control: Difficulty tweaking specific aspects of generated layouts.
- Transparency: Lack of explainability in black-box models.
- Practice Integration: Learning curve and cultural resistance in firms.
Conclusion
AI-generated floor plans are transforming architectural design by automating early layout creation, enabling mass customization, and enhancing creativity. Technologies like GANs, GNNs, and diffusion models offer diverse approaches with varying levels of control and realism. Despite limitations in data, interpretability, and constraint handling, AI is poised to augment the architect’s role, not replace it—offering a new set of tools that can streamline workflows and inspire better designs.
