TL;DR
The deep learning era of AI image generation spans just over a decade, yet the progress has been extraordinary. Generative Adversarial Networks (GANs), introduced by Ian Goodfellow in 2014, proved that neural networks could create entirely new images. StyleGAN refined this into photorealistic face synthesis. Variational Autoencoders and transformer architectures introduced new paradigms, culminating in OpenAI's DALL-E in 2021. Diffusion models then surpassed GANs in quality and stability, powering breakthroughs like DALL-E 2, Midjourney, and the open-source Stable Diffusion. Today, these same technologies drive architectural AI tools -- from automated floor plan generation to photorealistic exterior visualization and interior style transfer. This article traces the full timeline, explains how each technology works, and shows how it applies to architecture and design.
Introduction
For decades, computers excelled at analyzing and classifying images -- recognizing faces, detecting objects, reading handwritten digits. But generating new images from scratch was an entirely different challenge. Before 2014, the best computer-generated images relied on hand-crafted rules, procedural algorithms, or laborious 3D rendering pipelines. The idea that a neural network could learn to paint, sketch, or photograph something that never existed seemed far-fetched.
That changed with the arrival of deep generative models. Starting in 2014, a series of breakthroughs transformed AI from a passive observer of images into an active creator. Within a few short years, AI systems progressed from producing blurry 32x32 pixel patches to generating photorealistic 1024x1024 images indistinguishable from real photographs. By 2022, anyone with a text prompt could conjure detailed, high-resolution images in seconds.
This article traces that remarkable journey -- from the foundational GAN paper to today's diffusion-powered text-to-image systems -- and examines how these technologies are reshaping the field of architectural design.
GANs: The Revolution Begins (2014-2017)
The story of modern AI image generation begins with a single paper. In June 2014, Ian Goodfellow and colleagues at the University of Montreal published "Generative Adversarial Nets," introducing a framework that would define the next half-decade of generative AI research. The core idea was elegant: pit two neural networks against each other in a minimax game.
The Generator takes random noise as input and produces synthetic images. The Discriminator examines images and tries to distinguish real training data from the generator's fakes. As training progresses, the generator learns to produce increasingly convincing images to fool the discriminator, while the discriminator becomes more discerning. This adversarial dynamic drives both networks toward improvement, and when the process converges, the generator can produce images that are statistically indistinguishable from real data.
The original GAN paper demonstrated generation on simple datasets like MNIST handwritten digits and the CIFAR-10 natural image set. The results were modest -- small, somewhat blurry images -- but the conceptual leap was enormous. For the first time, a neural network could learn the underlying distribution of visual data and sample new instances from it.
DCGAN (2015): Adding Structure
The next major advance came from Alec Radford, Luke Metz, and Soumith Chintala with Deep Convolutional GANs (DCGAN) in 2015. By replacing the fully connected layers of the original GAN with convolutional and transposed convolutional layers, DCGANs could generate higher-quality images with more coherent spatial structure. DCGANs also demonstrated that the learned latent space had meaningful arithmetic properties -- famously showing that "man with glasses" minus "man" plus "woman" yielded "woman with glasses" in the generated image space.
Progressive GAN (2017): Scaling to High Resolution
A persistent challenge for early GANs was generating high-resolution images. Training was unstable, and outputs rarely exceeded 256x256 pixels. In 2017, Tero Karras, Timo Aila, Samuli Laine, and Jaakko Lehtinen at NVIDIA introduced Progressive GAN, which solved this by training the generator and discriminator in stages. The networks started by learning to generate tiny 4x4 images, then progressively added layers to increase resolution to 8x8, 16x16, and eventually 1024x1024 pixels. This curriculum-style training stabilized the process and produced stunningly realistic face images -- the first time AI-generated faces were widely mistaken for real photographs.
BigGAN (2018): Industrial Scale
Andrew Brock and colleagues at DeepMind scaled GANs to unprecedented levels with BigGAN in 2018. By training on the full ImageNet dataset with massive batch sizes and model capacity, BigGAN generated diverse, class-conditional images at 256x256 and 512x512 resolution with remarkable fidelity. BigGAN demonstrated that scaling up compute and data yielded consistent improvements in generation quality.
GAN Limitations
Despite their power, GANs suffered from well-documented problems. Mode collapse caused generators to produce only a narrow subset of possible outputs, ignoring the full diversity of the training distribution. Training instability meant that small hyperparameter changes could cause training to diverge entirely. The adversarial training objective was notoriously difficult to balance -- if the discriminator became too strong or too weak, learning stalled. These challenges motivated extensive research into GAN variants, training techniques, and eventually alternative generative frameworks.
StyleGAN and GAN Refinements (2018-2020)
The pinnacle of GAN-based image generation came with StyleGAN, published by Tero Karras, Samuli Laine, and Timo Aila at NVIDIA in December 2018 (with a follow-up conference presentation in 2019). StyleGAN introduced a fundamentally different generator architecture that borrowed concepts from neural style transfer.
The Style-Based Architecture
Instead of feeding the random latent vector directly into the generator, StyleGAN first maps it through a mapping network (a series of fully connected layers) into an intermediate latent space called W-space. This intermediate representation is then injected into the generator at multiple layers through Adaptive Instance Normalization (AdaIN). Different layers control different levels of detail: early layers govern high-level attributes like pose and face shape, while later layers control fine details like hair texture and skin pores.
This per-layer style control enabled unprecedented manipulation capabilities. Researchers could mix styles from different latent codes at different resolution levels, enabling operations like transferring the pose of one face onto the identity of another. The separation of concerns also led to more disentangled representations -- changing one attribute (like age) no longer unpredictably altered others (like gender).
StyleGAN2 and Beyond
StyleGAN2 (Karras et al., 2020) addressed artifacts present in the original StyleGAN, particularly the characteristic "water droplet" artifacts caused by AdaIN normalization. It replaced AdaIN with weight demodulation and introduced path length regularization for smoother latent space interpolation. The resulting images -- particularly of human faces -- achieved a level of photorealism that made the "This Person Does Not Exist" website a viral sensation.
Parallel GAN research also yielded important theoretical advances. Wasserstein GAN (WGAN) by Martin Arjovsky and colleagues (2017) replaced the original GAN's Jensen-Shannon divergence with the Wasserstein distance, providing more meaningful training gradients and better convergence properties. WGAN-GP (Gulrajani et al., 2017) further improved stability with gradient penalty regularization. These innovations made GAN training more predictable and accessible to researchers outside elite labs.
VAEs, VQ-VAE, and Transformers (2014-2021)
While GANs dominated headlines, parallel research threads explored fundamentally different approaches to image generation that would prove equally influential.
Variational Autoencoders (2013-2014)
Variational Autoencoders (VAEs), introduced by Diederik Kingma and Max Welling in their 2013 paper "Auto-Encoding Variational Bayes," took a probabilistic approach. A VAE consists of an encoder that maps images to a probability distribution in latent space and a decoder that reconstructs images from sampled latent points. The model is trained to maximize a variational lower bound on the data likelihood, balancing reconstruction accuracy with the smoothness of the latent space.
VAEs offered distinct advantages over GANs: stable training without adversarial dynamics, a well-defined probabilistic framework, and a smooth, interpretable latent space ideal for interpolation and manipulation. However, VAE-generated images tended to be blurrier than GAN outputs because the model optimized for average reconstruction quality rather than perceptual sharpness.
VQ-VAE: Discrete Representations (2017-2019)
VQ-VAE (Vector Quantized VAE), introduced by Aaron van den Oord and colleagues at DeepMind in 2017, addressed the blurriness problem by encoding images into discrete tokens from a learned codebook rather than continuous latent vectors. This discrete bottleneck forced the model to learn more structured representations. VQ-VAE-2 (Ali Razavi et al., 2019) extended this with a hierarchical architecture using multiple scales of discrete codes, enabling generation of high-fidelity 256x256 images that rivaled contemporary GANs.
The discrete token representation had a crucial side benefit: it made images amenable to the same autoregressive modeling techniques used for text. This opened the door to transformer-based image generation.
Image GPT and DALL-E (2020-2021)
OpenAI's Image GPT (Mark Chen et al., 2020) demonstrated that a GPT-style transformer trained autoregressively on sequences of pixel values could generate coherent images and learn useful visual representations -- despite having no built-in understanding of 2D spatial structure. While Image GPT operated on raw pixels (limiting resolution), it proved that the transformer architecture was viable for image generation.
The breakthrough came with DALL-E (Aditya Ramesh et al., January 2021). DALL-E combined a VQ-VAE to encode images as discrete tokens with a 12-billion-parameter autoregressive transformer that modeled the joint distribution of text tokens and image tokens. Given a text caption, DALL-E generated 256x256 images by sequentially predicting image tokens. The results were remarkable -- DALL-E could compose objects, attributes, and spatial relationships described in natural language, generating images of concepts it had never seen, like "an armchair in the shape of an avocado."
VQ-GAN (2021)
VQ-GAN (Patrick Esser, Robin Rombach, and Bjorn Ommer, 2021) combined the discrete codebook approach of VQ-VAE with adversarial training from GANs. By adding a discriminator loss during training, VQ-GAN produced significantly sharper reconstructions than vanilla VQ-VAE. When paired with CLIP (Contrastive Language-Image Pre-training) for text guidance, VQ-GAN+CLIP became a popular pipeline for text-guided image generation, bridging the gap between DALL-E and the diffusion model era. Importantly, VQ-GAN's encoder-decoder framework would become the foundation for latent diffusion models.
Diffusion Models Take the Lead (2020-2022)
The most consequential shift in AI image generation came from an unexpected direction. Diffusion models, rooted in non-equilibrium thermodynamics, had been theorized as far back as 2015 by Jascha Sohl-Dickstein and colleagues. But it was the 2020 paper "Denoising Diffusion Probabilistic Models" (DDPM) by Jonathan Ho, Ajay Jain, and Pieter Abbeel at UC Berkeley that demonstrated their practical power.

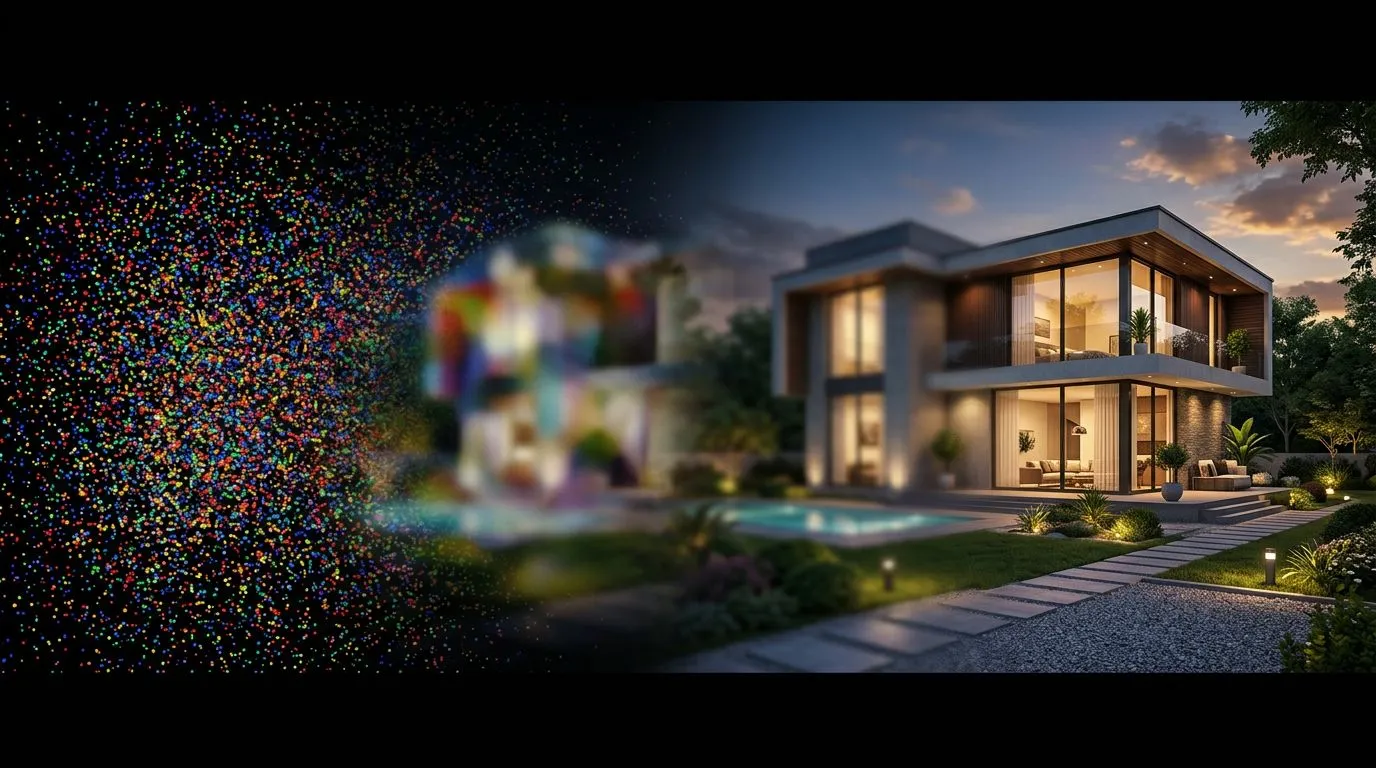

How Diffusion Works
The diffusion process has two phases. In the forward process, Gaussian noise is gradually added to a training image over hundreds or thousands of steps until the image becomes pure random noise. In the reverse process, a neural network (typically a U-Net architecture) is trained to predict and remove the noise at each step, progressively recovering a clean image from pure noise. At generation time, the model starts from randomly sampled noise and iteratively denoises it, step by step, into a coherent image.
This approach had several critical advantages over GANs. Training was stable -- no adversarial dynamics, no mode collapse, no delicate balancing of competing networks. The iterative denoising process naturally produced diverse outputs. And the mathematical framework provided principled ways to control the generation process through conditioning.
Classifier-Guided and Classifier-Free Diffusion
Prafulla Dhariwal and Alex Nichol at OpenAI published "Diffusion Models Beat GANs on Image Synthesis" in 2021, demonstrating that diffusion models could surpass the best GANs (including BigGAN and StyleGAN) on standard image quality benchmarks like FID (Frechet Inception Distance). Their key innovation was classifier guidance: using the gradients from a pre-trained image classifier to steer the denoising process toward a desired class, dramatically improving sample quality and controllability.
Subsequently, classifier-free guidance (Ho and Salimans, 2022) eliminated the need for a separate classifier by jointly training the diffusion model with and without conditioning. This simplified the pipeline while providing even finer control over the trade-off between sample quality and diversity. Classifier-free guidance became the standard approach for all subsequent text-to-image diffusion models.
The Text-to-Image Boom (2022-Present)
The convergence of diffusion models, large language models, and massive training datasets ignited the text-to-image revolution of 2022 -- a period that fundamentally changed how images are created across every creative discipline.
DALL-E 2 (April 2022)
OpenAI's DALL-E 2 (Aditya Ramesh et al.) replaced the original's autoregressive transformer with a diffusion-based architecture guided by CLIP embeddings. The system first used a "prior" model to translate a text caption into a CLIP image embedding, then used a diffusion model to generate a 64x64 image conditioned on that embedding, followed by two upsampling diffusion models to reach 1024x1024 resolution.
DALL-E 2 represented a quantum leap in photorealism, compositional understanding, and semantic control. It introduced inpainting (editing specific regions of an image), outpainting (extending images beyond their borders), and prompt-based variations. The results made international headlines and catalyzed public awareness of generative AI.
Google Imagen (May 2022)
Google Brain's Imagen (Chitwan Saharia et al.) took a different approach to text understanding. Instead of using CLIP, Imagen employed a frozen T5-XXL text encoder -- a large language model pre-trained purely on text data -- to encode prompts. This deeper linguistic understanding enabled Imagen to handle complex, compositional prompts with greater accuracy. Imagen achieved state-of-the-art results on the DrawBench benchmark and demonstrated that scaling the language model was more important for image quality than scaling the diffusion model itself.
Midjourney (2022-Present)
Midjourney, founded by David Holz (co-founder of Leap Motion), took a unique path. Operating as an independent research lab, Midjourney released its image generation system through a Discord bot interface, creating a community-driven creative platform. While Midjourney's technical architecture has not been fully published, its outputs are known for their distinctive artistic quality, rich color palettes, and painterly aesthetics. Midjourney became the tool of choice for concept artists, illustrators, and increasingly, architects and interior designers seeking rapid visualization of design concepts.
Stable Diffusion (August 2022)
The most transformative release was Stable Diffusion, developed by the CompVis group at Ludwig Maximilian University of Munich (Robin Rombach, Andreas Blattmann, Dominik Lorenz, Patrick Esser, and Bjorn Ommer) in collaboration with Stability AI and Runway. The key technical innovation was latent diffusion: instead of running the diffusion process in full-resolution pixel space (which is extremely compute-intensive), Stable Diffusion first encodes images into a compact latent representation using a pre-trained VQ-GAN encoder, performs diffusion in this latent space, and then decodes back to pixel space.
This architectural choice reduced computational requirements by roughly 10-30x compared to pixel-space diffusion, making it possible to run the model on consumer GPUs with as little as 4-8 GB of VRAM. Combined with its open-source release under a permissive license, Stable Diffusion democratized high-quality image generation overnight. Within months, a vast ecosystem of fine-tuned models, ControlNet extensions, and community tools emerged, enabling specialized applications across every visual domain -- including architecture and design.
How These Technologies Power Architectural Design
The generative AI technologies described above are not confined to artistic expression or entertainment. They are actively transforming architectural design, from initial concept exploration to final presentation rendering.
GANs in Floor Plan Generation
GAN-based approaches were the first deep learning methods applied to automated floor plan generation. House-GAN (Nauata et al., 2020) used a graph-constrained GAN to generate room layouts from bubble diagrams, treating rooms as nodes and adjacency requirements as edges in a graph neural network. House-GAN++ extended this with improved graph representations and better adherence to architectural constraints. These tools enable architects to rapidly explore layout options that satisfy spatial requirements, as detailed in our comprehensive guide to AI-Generated Floor Plan Applications in Architecture.
Diffusion Models in Architectural Visualization
Diffusion models have opened new frontiers in architectural visualization. HouseDiffusion (Shabani et al., 2023) applies denoising diffusion to generate room polygons from bubble diagrams, producing more diverse and architecturally valid layouts than GAN-based predecessors. Text-conditioned diffusion models enable architects to generate exterior renderings, interior perspectives, and environmental context images from descriptive prompts -- a workflow explored in depth in our article on The Evolution of AI-Generated Architectural Floor Plans. For a practical tutorial on using these diffusion-based tools to design building facades and exteriors, see our guide on AI architectural rendering.
Text-to-Architecture Workflows
The text-to-image paradigm has created entirely new architectural workflows. Designers can describe a building concept in natural language -- "a three-story Scandinavian-style residential building with large windows, timber cladding, and a green roof surrounded by birch trees" -- and receive multiple photorealistic visualizations in seconds. This accelerates the early design phase from days to minutes, enabling rapid iteration and client communication. These emerging workflows are reshaping the profession as discussed in our overview of AI in Home Design - Current and Future Application Scenarios. For homeowners, the same text-to-image technology now powers renovation planning tools -- see our guide on the AI home renovation planner to learn how to visualize wall, floor, and furniture changes from a simple description.
AI Style Transfer in Interior Design
Style transfer techniques, derived from GAN and diffusion model research, allow designers to reimagine existing spaces in different aesthetic styles. An interior photograph can be transformed from minimalist to Art Deco, from industrial to Mediterranean, while preserving the underlying spatial geometry. This capability is invaluable for interior designers presenting style alternatives to clients and for homeowners exploring renovation possibilities. For a detailed comparison of the platforms that offer these style transfer capabilities, read our best AI tools for interior design professional comparison.
Key Trends and What's Next
Image Quality and Resolution
The progression in image quality tells a dramatic story. In 2014, GANs produced grainy 32x32 pixel images barely recognizable as objects. By 2017, Progressive GAN achieved 1024x1024 photorealistic faces. By 2022, diffusion models generated detailed, coherent scenes at 1024x1024 and beyond. Current models like SDXL and Midjourney v6 produce images that routinely pass as photographs, with accurate lighting, material properties, and spatial coherence.
Semantic Control
Control over generated content has evolved from crude class labels (BigGAN) to rich natural language prompts (DALL-E 2, Stable Diffusion) to fine-grained spatial conditioning (ControlNet, IP-Adapter). Architects can now specify not just what to generate, but precise spatial layouts, viewpoints, lighting conditions, and material finishes. Inpainting and outpainting enable iterative refinement of specific regions without regenerating the entire image.
Accessibility and Democratization
Perhaps the most significant trend is the democratization of these tools. What once required million-dollar GPU clusters and PhD-level expertise now runs on a laptop or through a web browser. Open-source models, fine-tuning frameworks like LoRA, and user-friendly interfaces have made AI image generation accessible to individual architects, designers, students, and hobbyists. This accessibility is accelerating adoption across the architecture and design industries at an unprecedented pace.
The Future: Video, 3D, and Multimodal AI
The next frontier extends beyond static images. Video generation models like Sora (OpenAI), Runway Gen-3, and Kling are applying diffusion architectures to produce coherent video sequences from text prompts. 3D generation models are learning to create textured meshes, NeRFs (Neural Radiance Fields), and Gaussian splats from single images or text descriptions. Multimodal AI systems are integrating vision, language, and spatial reasoning into unified models that can understand architectural drawings, generate 3D models, and provide design feedback in natural language.
For architecture specifically, the convergence of these capabilities points toward a future where AI can generate not just images of buildings, but complete 3D models with accurate structural properties, material specifications, and code compliance -- transforming the entire design-to-construction pipeline.
Frequently Asked Questions
What is the difference between GANs and diffusion models?
GANs use two competing neural networks -- a generator and a discriminator -- trained in an adversarial game. Diffusion models use a single neural network trained to remove noise from images step by step. Diffusion models generally produce higher-quality, more diverse outputs with more stable training, while GANs can generate images faster (in a single forward pass rather than hundreds of denoising steps). Both approaches have been applied successfully to architectural design tasks.
How does Stable Diffusion work in simple terms?
Stable Diffusion starts with random noise and progressively removes it through a series of learned denoising steps, guided by a text prompt. The key innovation is that it operates in a compressed "latent space" rather than directly on pixels, which dramatically reduces computational requirements. A text encoder (CLIP) translates your prompt into a numerical representation that guides the denoising process toward an image matching your description.
Can AI image generation be used for professional architectural design?
Yes. AI image generation is increasingly used in professional architectural practice for concept visualization, client presentations, design exploration, and style studies. Tools powered by diffusion models can generate photorealistic exterior and interior renderings from text descriptions or rough sketches. However, AI-generated images are typically used as visualization and ideation aids rather than as final construction documents, which still require precision CAD and BIM workflows.
What is latent diffusion and why does it matter?
Latent diffusion performs the denoising process in a compressed representation space (the "latent space") rather than in full-resolution pixel space. This approach, pioneered by Robin Rombach and colleagues, reduces computational cost by 10-30x while maintaining image quality. It is the reason Stable Diffusion can run on consumer GPUs rather than requiring expensive cloud infrastructure, and it has made high-quality AI image generation accessible to individuals and small firms.
How are GANs used in floor plan generation?
GANs have been adapted for floor plan generation through architectures like House-GAN and House-GAN++, which use graph neural networks to encode room adjacency relationships (bubble diagrams) and generate corresponding spatial layouts. These models learn from datasets of real architectural floor plans (such as RPLAN) to produce layouts that satisfy spatial constraints, room connectivity requirements, and dimensional proportions. They enable rapid exploration of layout alternatives during early design phases.
What are the ethical concerns with AI image generation?
Key concerns include the use of copyrighted training data without artist consent, the potential for generating misleading deepfakes, bias in generated content reflecting training data imbalances, and the environmental impact of large-scale model training. The architecture and design fields face additional questions around the attribution of AI-assisted designs and the impact on traditional visualization professions. Responsible use, transparent disclosure of AI involvement, and continued development of detection tools are important safeguards.
How fast is AI image generation improving?
The pace of improvement has been extraordinary. From 2014 to 2022, image quality went from blurry 32x32 patches to photorealistic 1024x1024 scenes. Generation speed improved from hours per image to seconds. Semantic control evolved from simple class labels to rich natural language prompts. Model accessibility went from requiring specialized hardware clusters to running on consumer laptops. Current trends in video generation, 3D synthesis, and multimodal reasoning suggest the next few years will bring equally dramatic advances.
Will AI replace architects and designers?
AI is augmenting rather than replacing architects and designers. Current AI tools excel at generating visual options quickly, handling repetitive tasks, and exploring design spaces that would be impractical to navigate manually. However, architecture requires deep contextual understanding, regulatory knowledge, structural engineering judgment, client relationship management, and creative vision that AI cannot replicate independently. The most productive path forward is human-AI collaboration, where architects use AI tools to enhance their capabilities while maintaining creative direction and professional accountability.
